Core SWX

BPU Style M-Snap

Name: BPU Style M-Snap
Brand: Core SWX
SKU: NANO-U98MX
Price: 285.00 USD
Availability: InStock

NANO-U98MX

Purchase & earn 285 points

$285

Product variants

Pairs well with

Pre-order. Available at the end of October.

2 Year Warranty

Complimentary shipping & returns

Description

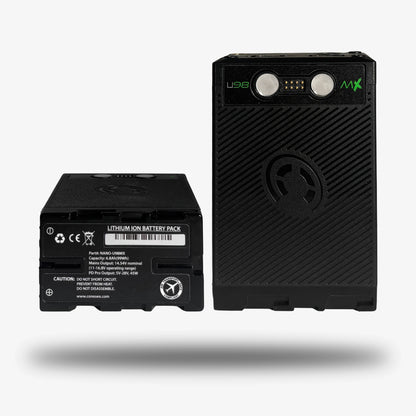

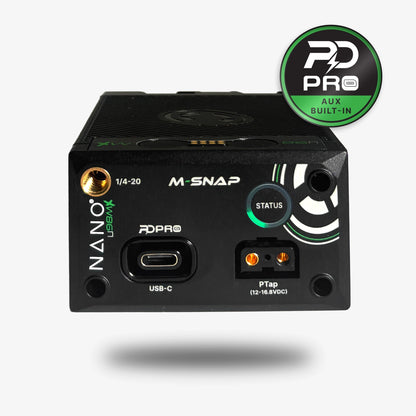

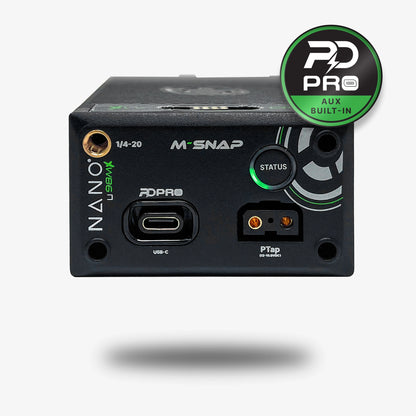

The NANO-U98MX is a compact, high-performance 14.8V battery designed for Sony camcorder and Blackmagic Design Pyxis users who need extended runtime and accessory power in a streamlined form. With a 98Wh capacity and dual output options—an unregulated P-Tap (11–16.8V) and 45W PDPro USB-C PD—the U98MX powers both your camera and essential gear from a single source. Whether you’re running monitors, wireless systems, or mobile devices, this battery offers pro-grade versatility in a small, travel-friendly footprint. A built-in RING-LED power gauge and push-button interface allow quick charge checks at a glance, helping you stay focused during fast-paced shoots.

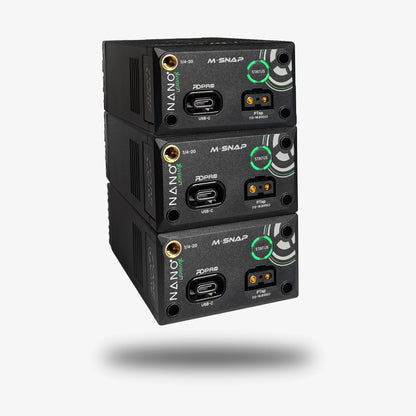

Now part of the NANO M-Snap Series, the U98MX introduces Core SWX’s innovative M-Snap™ magnetic charging system. Multiple batteries can be stacked—regardless of mount type or voltage—and charged via a single PDPro input, eliminating clutter and speeding up turnaround. The USB-C PD port also supports battery recharging and fast charging for laptops and mobile accessories, reducing the need for separate chargers. Fully compatible with OEM chargers, the NANO-U98MX integrates easily into existing kits while upgrading your on-set power workflow with Core’s latest technology in portable charging, monitoring, and multi-device support.

Specifications

Capacity: 98wh (14.8v, 6600mah)
Operational Voltage: DC 11v-16.8v
USB-C PD Charge Input: Up to 65w
USB-C PD Pro Output: DC 5v/9v/15v/20v, 45w
Size: 3.85” x 2.6” x 1.65”
Weight: 0.9lbs

Support

Customer Reviews

havent even used it yet for a shoot but damn im glad i finally pulled the trigger. SO FAR what i noticed: for a 150, its light AND small in size. compared to my Sony BP-FL75, which is around the same weight but probably heavier, its bigger in size. the battery capacity is OUT OF THIS WORLD as my F55 can now be powered 6 hours and 42 minutes on a full battery(+/- cause i didnt have my mic or lens attached). i can’t wait to get another

I have used this cable to power the monitor on my rig without fail. Great and reliable cable to include in your kit.

Perfect adapter for my Canon to use a V-mount battery instead of using LP-E6.
