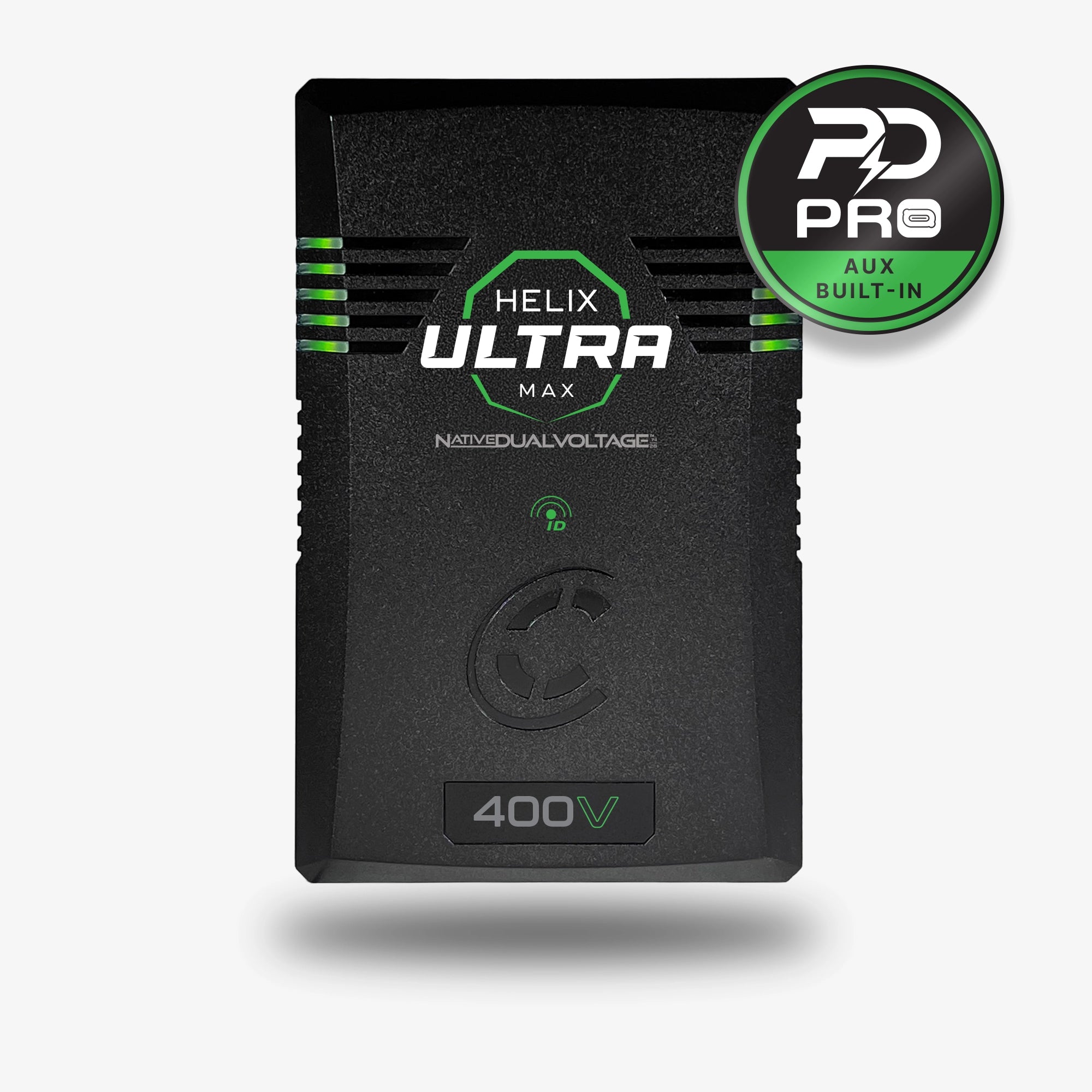

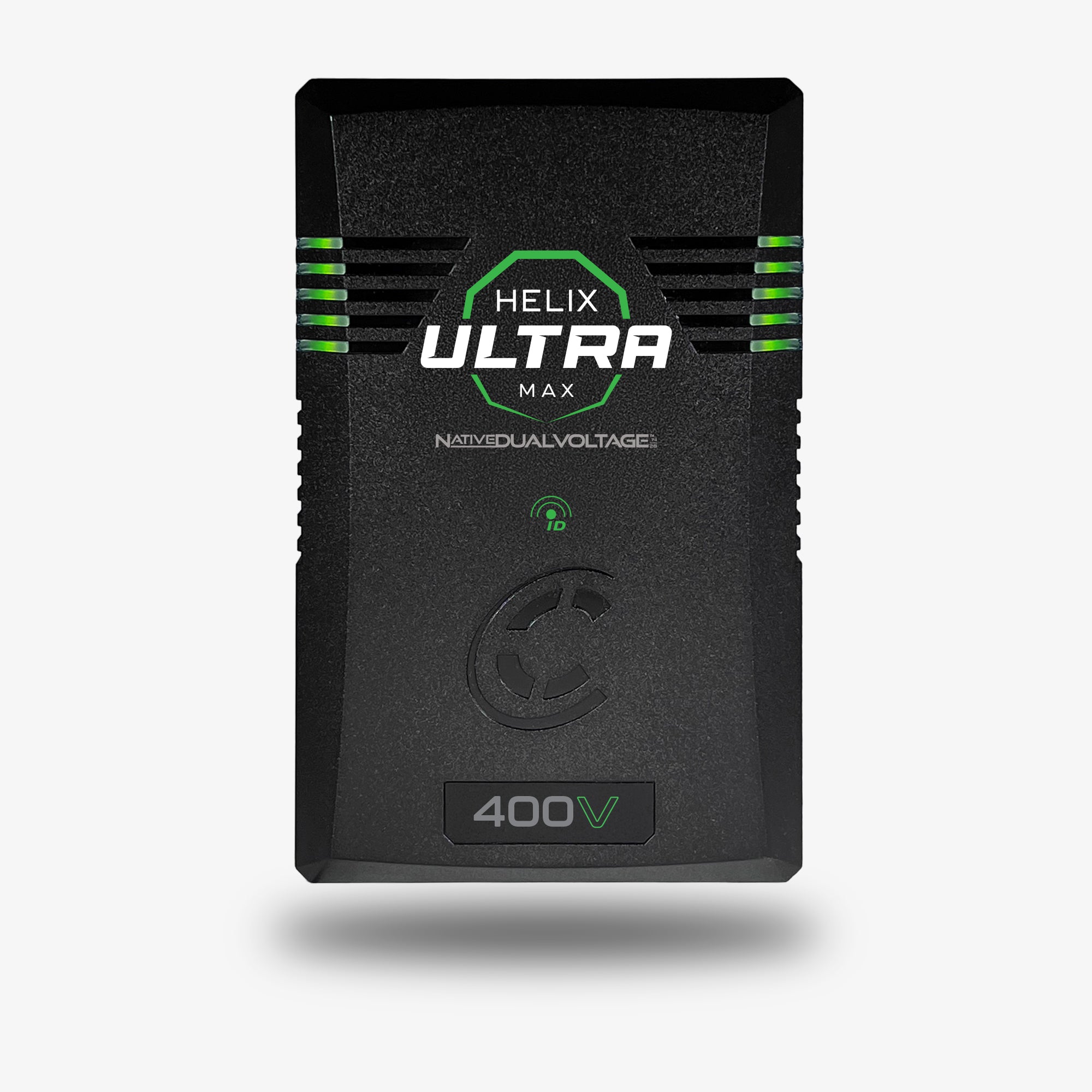

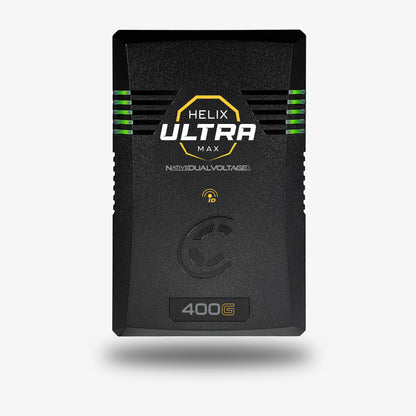

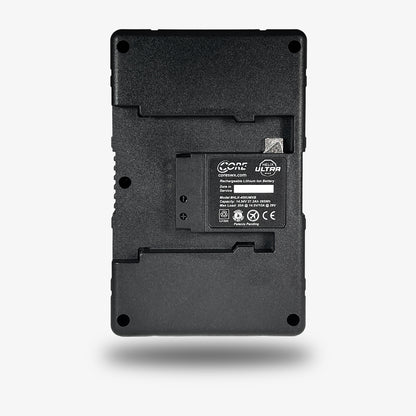

The Helix Max Ultra is the next evolution in Native Dual Voltage™ battery technology, delivering high-efficiency power for cinema, broadcast, and lighting professionals. Designed to support both 14V and 28V applications, it enables seamless operation across cameras, LED lights, and production accessories—eliminating the need for multiple battery systems. Powered by AI-enhanced power management, the Helix Max Ultra dynamically adapts to the power requirements of today’s most demanding platforms, including the ARRI Alexa 35, RED V-RAPTOR XL, and Blackmagic URSA Cine 12K/17K. With up to 12A peak on 28V and 24A peak on 14V, it ensures full-rate power delivery without loss or regulation on the mains. The ultra-durable polycarbonate shell, side-mounted backlit LCD, and compact form factor make it ready for long days on set.

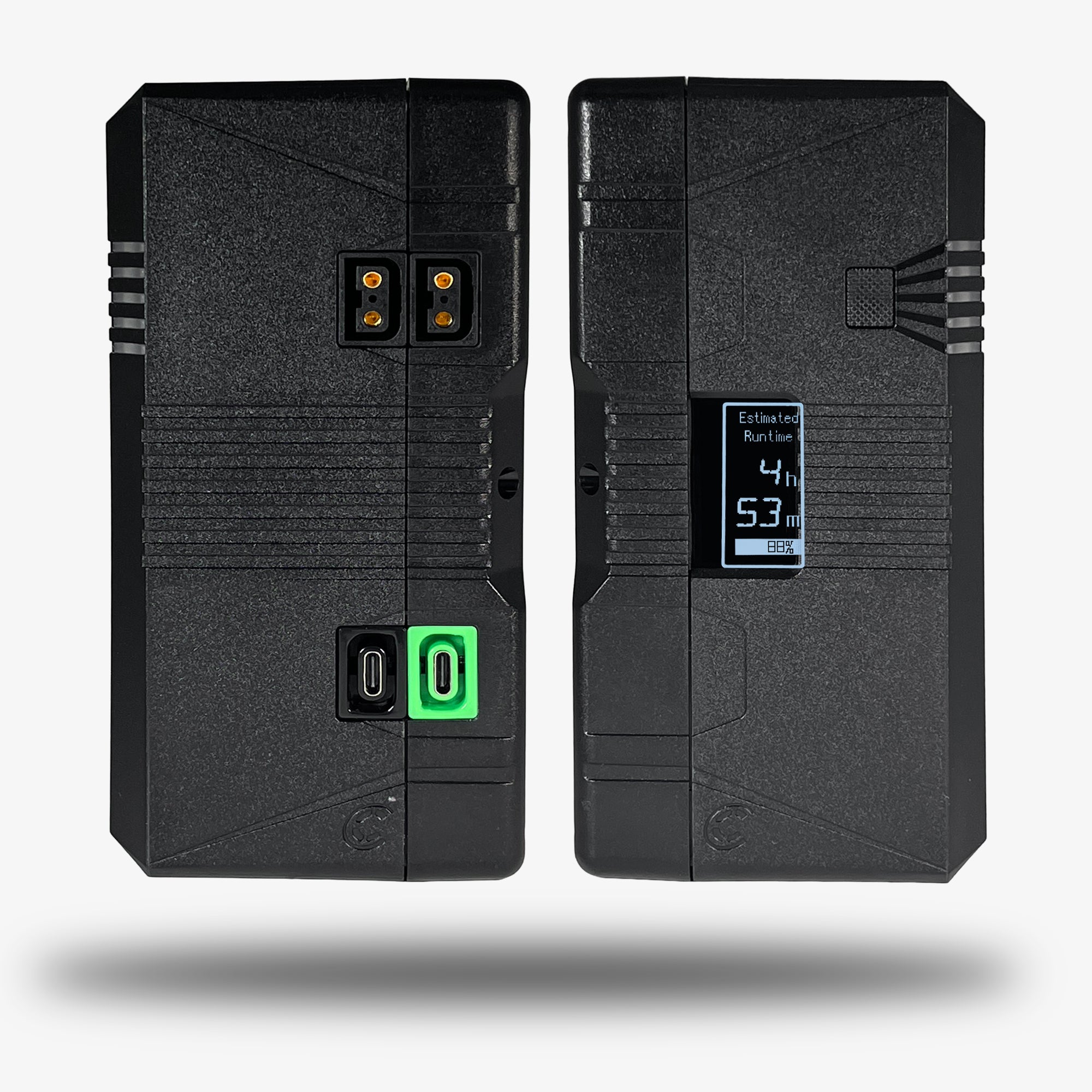

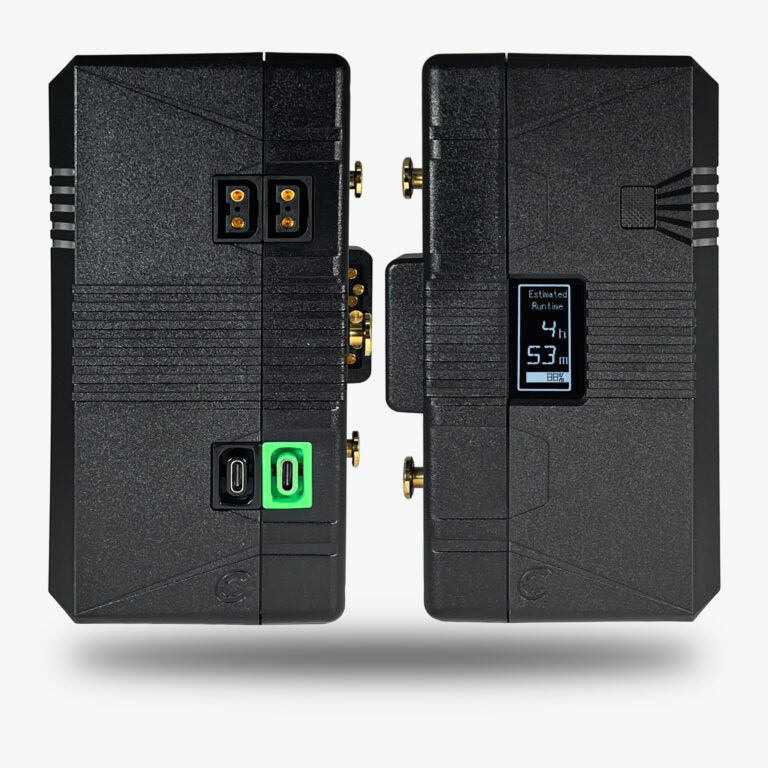

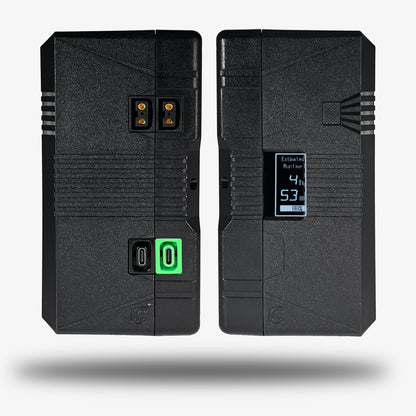

Equipped with advanced auxiliary outputs—including dual PDPro™ taps, USB-C PD, and P-Tap—the Helix Max Ultra powers everything from wireless transmitters to high-draw LED fixtures. USB-C PD input enables fast recharging up to 100W, minimizing downtime. VoltBridge™ iD integration offers smart diagnostics, battery health, and firmware insights via mobile app, allowing professionals to monitor power systems in real time. Available in 99Wh, 158Wh, 297Wh, and 395Wh options, and in V-Mount, G-Mount, and B-Mount configurations. The 99Wh and 158Wh models are UN38.3 certified and IATA-compliant, making them travel-ready for global productions demanding rugged, intelligent, and uncompromising power solutions.


Specifications

Capacity: 367wh
Operational Voltage: Native Dual Voltage, DC 11v-16.8v/DC 22v-33.6v
Size: 3.5″ x 6.3″x 3.6″
Weight: 3.6lbs.
Load: continuous 20A @ 16.8v and 10A @ 33.6v
