Description

Load video:

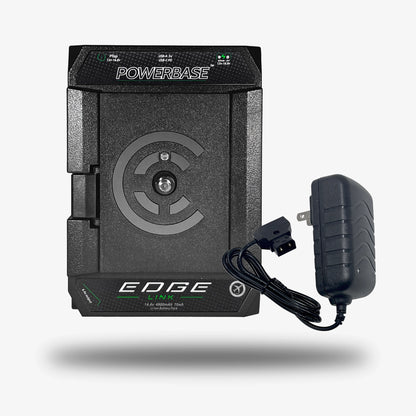

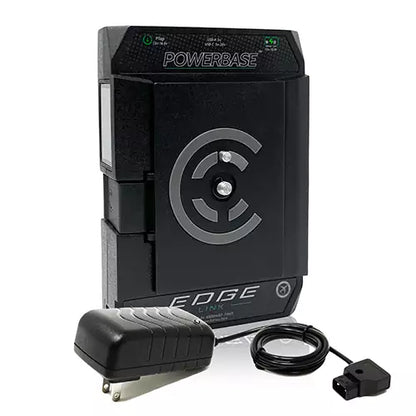

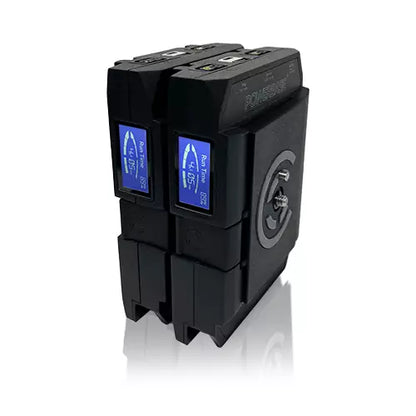

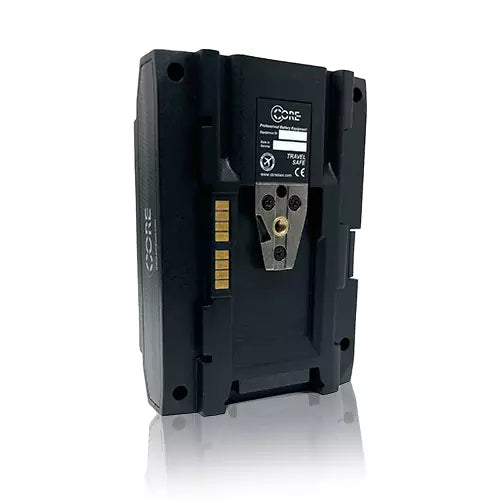

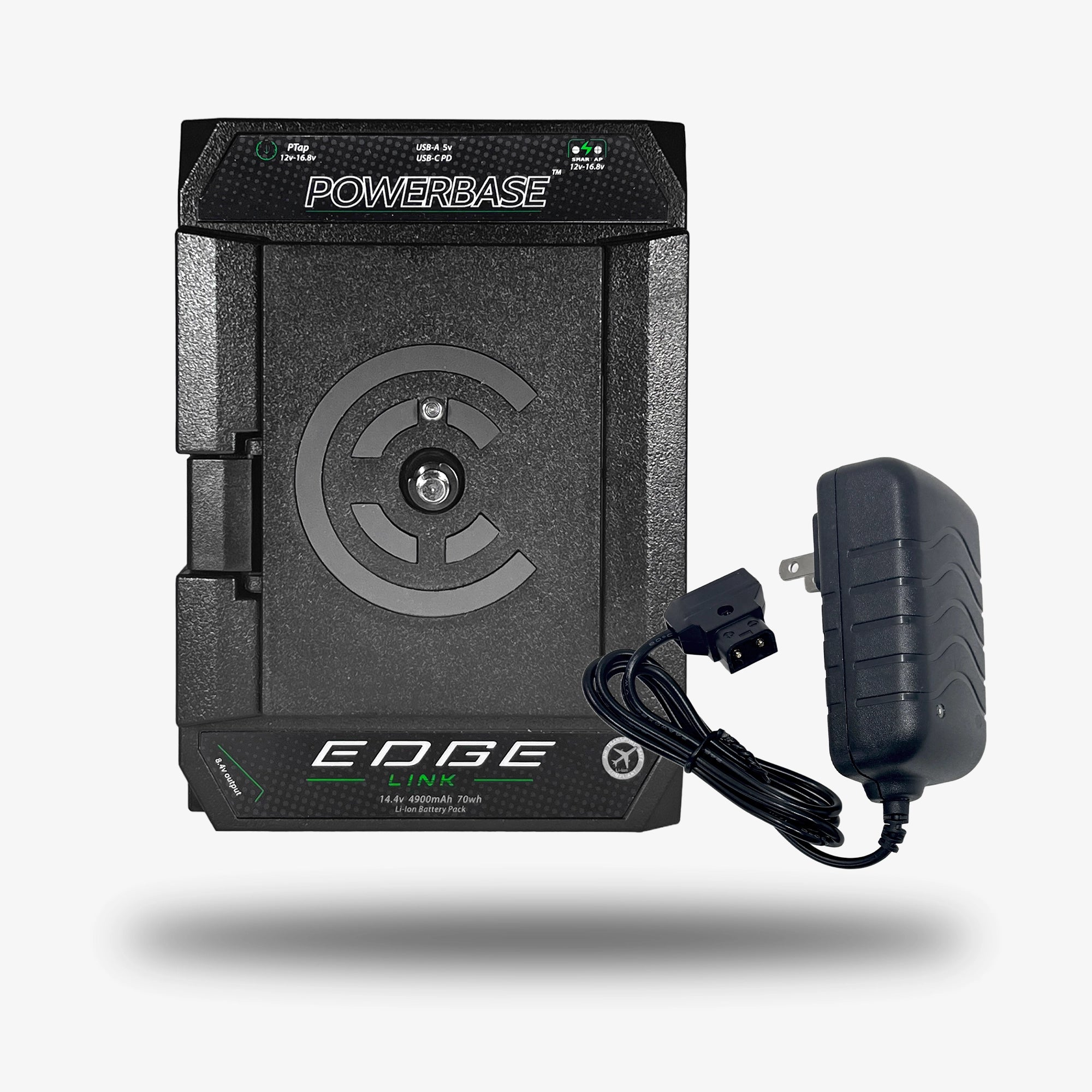

The Powerbase Edge LINK kit combines the 70Wh PBE-LINK battery with the PB70C15US P-Tap charger, offering a complete power solution for professional video gear. Whether mounted via built-in 1/4"-20 threads or the integrated V-mount adapter, the compact form factor balances perfectly under cameras or on rigs. And thanks to its linking capability, multiple Edge LINK packs can be stacked together to extend runtime—without needing to swap batteries mid-shoot.

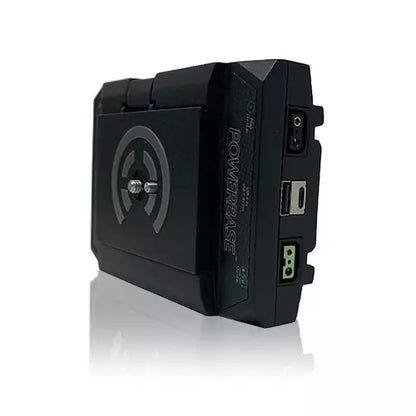

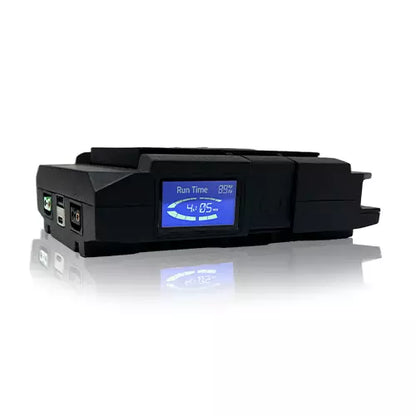

Equipped with two unregulated P-Taps, a 5V USB-A, and a 45W USB-C PD output, the PBE-LINK powers cameras, monitors, and accessories from a single compact unit. Charge via USB-C PD or use the included PB70C15US P-Tap wall charger for traditional charging workflows. A side-mounted backlit LCD displays remaining runtime, percentage, and charge status, while a wraparound LED fuel gauge offers instant visibility from any angle. With intelligent SMBUS communication and VoltBridge ID, the Edge LINK delivers pro-grade, expandable power—tailored to fit your setup.



Specifications

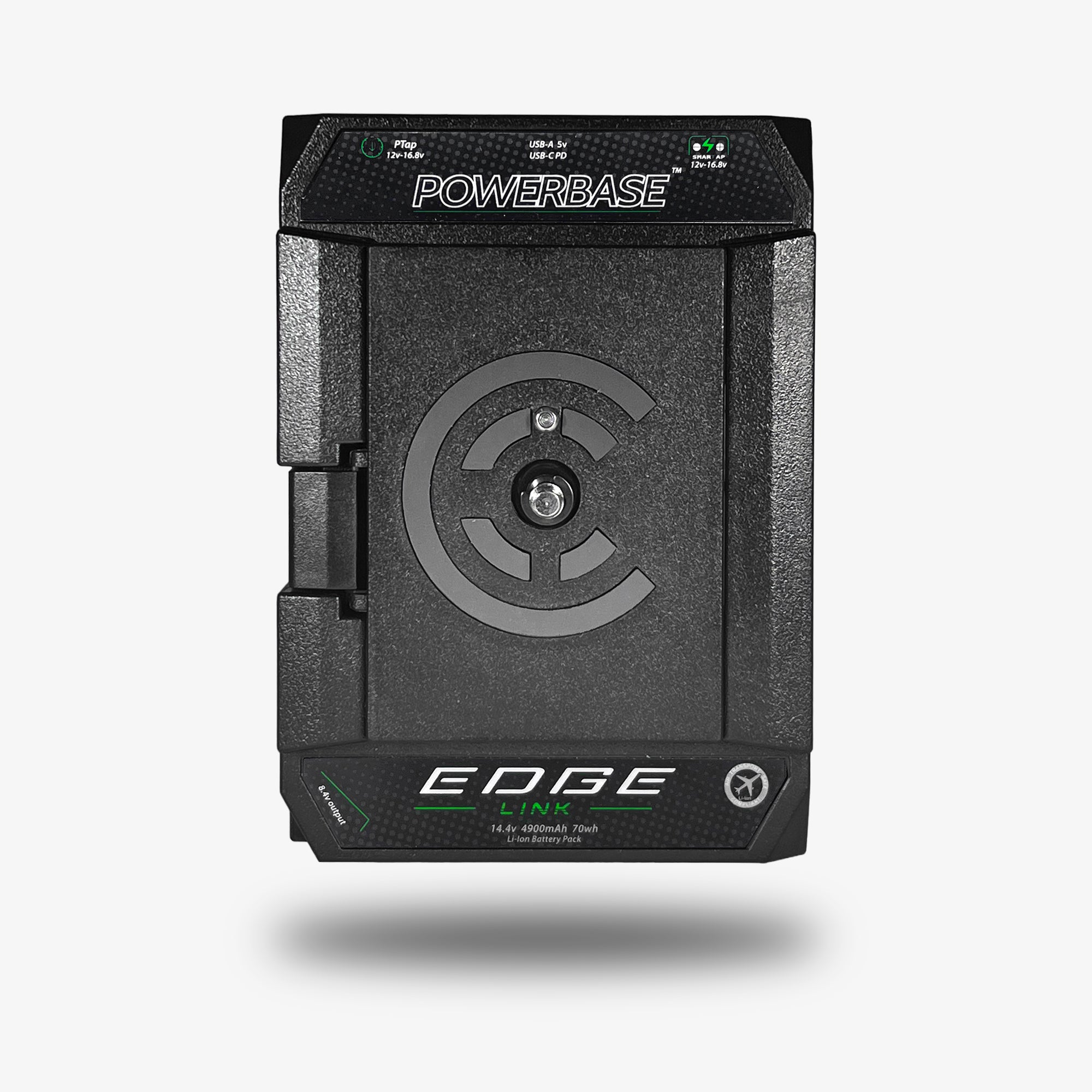

PBE-LINK:
Capacity: 70wh (14.8vdc, 4.7Ah )
Size: 5.6” x 3.9” x 1.65”
Weight: 1.4lbs.
Max Continuous Load: 8A
Normal Runtime: approx. 12+ hours (Sony A7 w/o accessories)

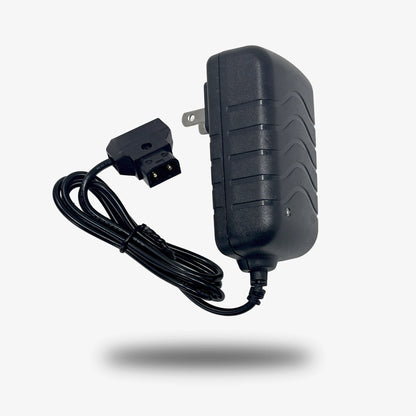

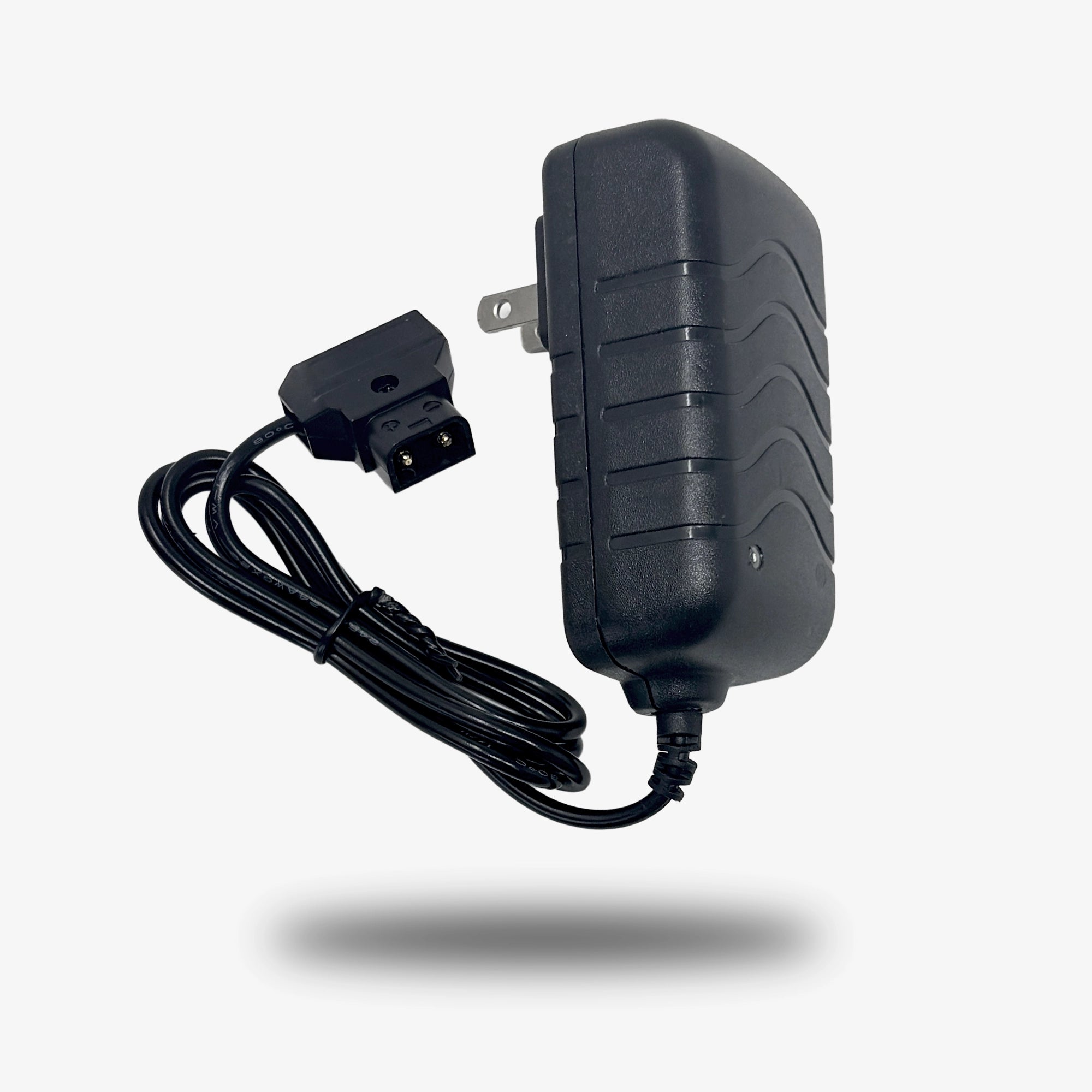

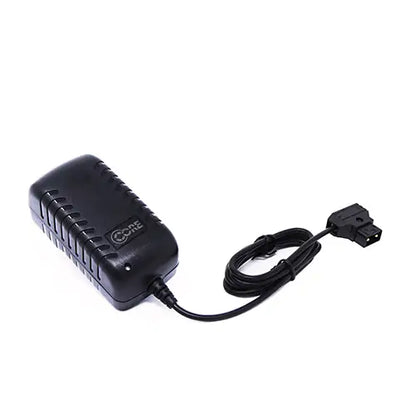

PB70C15US:
Quick Charge Current: 1.5A
Power Range per Channel: up to 24watts/hr.
Size: 3.5″ x 1.25″ x 1”
Weight: .5 lbs.
Input Voltage: 90-240VAC 50/60Hz
