Renegade®
Renegade®
Sku: RNG7



-
LiFEPO4 block battery with 15v, 28v, and 48v outputs.
Cell Chemistry: LiFEPO4
Capacity: 777wh(28.8v, 27AH)
Size: 9.56” x 13.7” x 5.3”
Weight: 21.7 lbs.
Voltage Outputs: 2x XLR 4p 15v(regulated), 2x XLR 3p @28v(DC 22.5v-32.85v), 1x PowerConn @ 48v(regulated)
Max Load: 20A @ 15v, 20A @ 28v, 15A @ 48v)
Built-in Protections: Temperature(internal), Voltage(internal), Current(resettable internal)
Check out the Power Station Caddy to mount the Renegade to a stand.
16 in stock
$2,499.00
Find a Local Reseller
Renegade®
$2,499.00

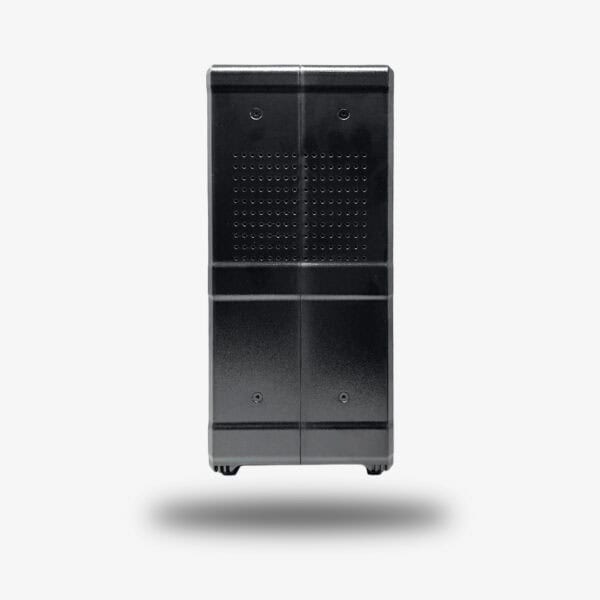

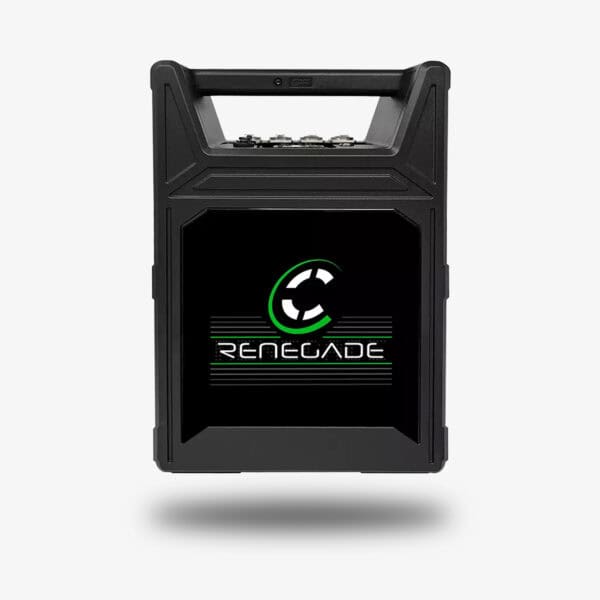

The Core SWX Renegade is a high-performance block battery designed to meet the power demands of professional cinema and lighting applications. Its durable polycarbonate housing matches the size of the Maverick, allowing it to seamlessly fit into legacy shipping cases. This compatibility makes it an ideal choice for professionals looking to maximize their existing equipment without investing in new cases. The thoughtful design enhances convenience, enabling filmmakers and production crews to transport and protect their power source with ease.
While the Renegade requires an external charger, its design accommodates the PFQ8 speed charger within the rear compartment of legacy shipping cases. This integration simplifies transportation, keeping both the battery and charger organized and ready for use. By eliminating the need for separate storage, the Renegade offers a streamlined solution that enhances workflow efficiency.
Equipped with an advanced backlit runtime LCD, the Renegade provides comprehensive status reporting tailored to professional production environments. The three-phase LCD display delivers essential power information, including a standby charge level based on a 100-watt load. This feature allows users to assess the battery’s capacity before connecting it to equipment, ensuring optimal power management. Once in use, the LCD dynamically updates in real-time, recalculating runtime based on current power draw to deliver accurate battery life estimates. When plugged into the PFQ8 charger, the display also provides precise charge time calculations, allowing users to plan accordingly and ensure their gear is always powered and production-ready.
Designed for maximum usability, the Renegade is a complete mobile power station that enhances reliability on set. Its compatibility with legacy cases, intelligent LCD monitoring, and seamless charger storage make it one of the most convenient and efficient power solutions available. Built to support high-demand productions, the Renegade offers a combination of durability, portability, and advanced diagnostics to ensure uninterrupted performance in any production environment.
Specifications
Cell Chemistry: LiFEPO4
Capacity: 777wh(28.8v, 27AH)
Size: 9.56” x 13.7” x 5.3”
Weight: 21.7 lbs.
Voltage Outputs: 2x XLR 4p 15v(regulated), 2x XLR 3p @28v(DC 22.5v-32.85v), 1x PowerConn @ 48v(regulated)
Max Load: 20A @ 15v, 20A @ 28v, 15A @ 48v)
Built-in Protections: Temperature(internal), Voltage(internal), Current(resettable internal)
Capacity Monitoring: Backlit LCD
Charge Time: 3.5hrs with PFQ8 external charger(included)
AC Mains Input: 100-240VAC 50/60Hz
Build: Polycarbonate and Sheet Aluminum
